ENTS: Environmental NeTworked Sensing

An open-source ecosystem for building low-cost, extensible, and field-ready environmental wireless sensor networks.

Co-designed with domain scientists at UC Santa Cruz, ENTS supports researchers and practitioners across environmental sciences, agroecology, and embedded systems by providing end-to-end sensing infrastructure from custom hardware to cloud visualization.


Live Cloud Platform: DirtViz

The central cloud visualization and monitoring service for the ENTS ecosystem is live at dirtviz.jlab.ucsc.edu.

Operational Cloud Service: DirtViz

DirtViz is the production data ingestion and visualization platform for ENTS. It aggregates live measurements from outdoor sensor nodes, dynamically renders time-series graphs, and provides public and authenticated access to environmental datasets for research.

DirtViz interactive web dashboard
Figure 1: The DirtViz web dashboard presents live interactive plots from field-deployed ENTS sensing nodes, with custom time-range filtering, streaming modes, and CSV export capabilities.

Getting Started

Select the pathway that matches your goals:

  • For Users and Field Deployers


    Deploy and configure ENTS hardware nodes in the field, wire sensors, and visualize measurements in the DirtViz web application.

    Open User Guide

  • For Developers and Contributors


    Understand the system architecture, explore the multi-repository source code directory, and set up development environments.

    Open Developer Hub


System Overview

The ENTS platform connects physical environmental sensors to researchers through an integrated hardware, firmware, and cloud data pipeline.

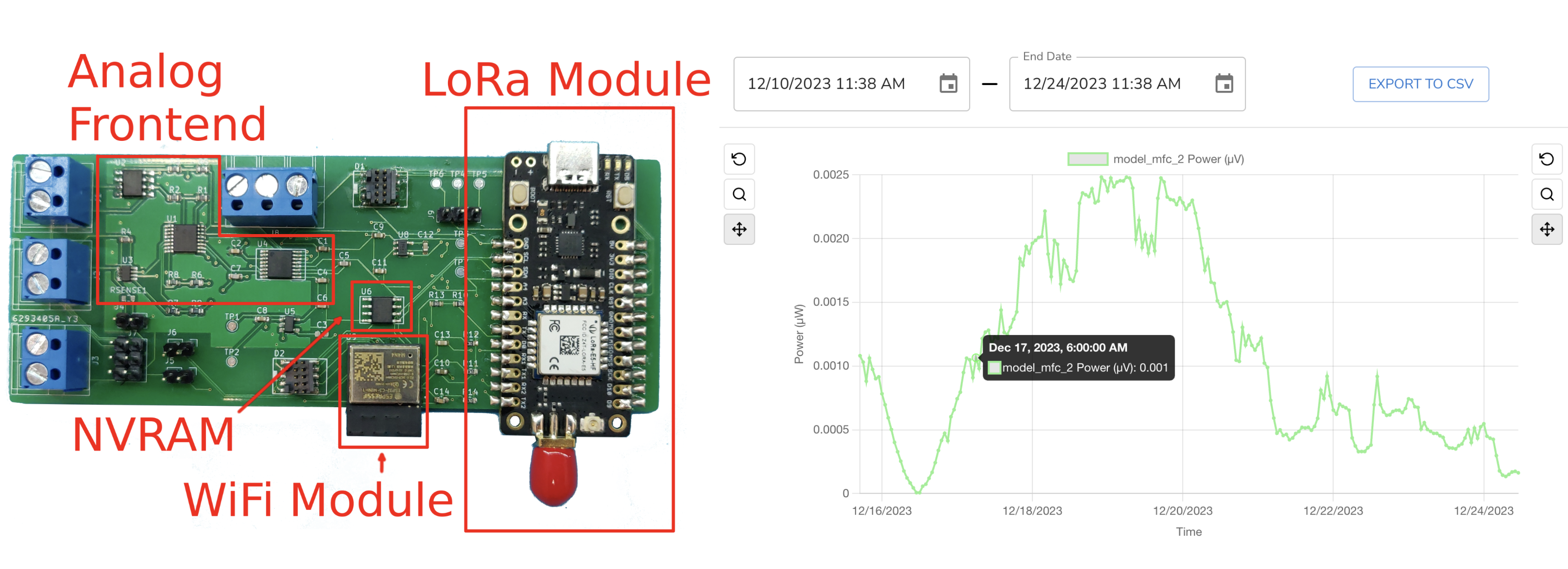

ENTS end-to-end sensing ecosystem overview diagram
Figure 2: End-to-end system overview of the ENTS ecosystem. Field-deployed hardware nodes (left) collect precision electrical and environmental telemetry, which is transmitted via LoRaWAN or WiFi into the DirtViz cloud backend and React frontend (right).

Architecture Dataflow

flowchart LR
    subgraph SensingNode ["1. ENTS Sensing Node"]
        direction TB
        Sensors["Sensors<br/>Differential V/I, SDI-12, I2C"]
        Board["Node Hardware<br/>STM32WLE5 + ESP32-C3"]
        Sensors -->|Analog / Digital| Board
    end

    subgraph Transmission ["2. Wireless Telemetry"]
        direction TB
        WiFi["WiFi / Direct HTTP<br/>Local Lab Network"]
        LoRa["LoRaWAN Telemetry<br/>The Things Network"]
    end

    subgraph Cloud ["3. DirtViz Cloud Service"]
        direction TB
        DirtViz["Ingestion REST API<br/>Flask + PostgreSQL"]
        WebUI["Web Interface<br/>React Dashboard"]
        API["Downstream API Consumers<br/>e.g., NodeFlow Automation"]
        DirtViz --> WebUI
        DirtViz --> API
    end

    Board -->|Captive Config / Upload| WiFi
    Board -->|Long-Range Field Telemetry| LoRa
    WiFi --> DirtViz
    LoRa --> DirtViz
Figure 3: High-level data ingestion flow from sensing hardware through dual wireless networks into DirtViz and external automation systems.

Key Features

  • Precision Analog and Digital Sensing: Integrated support for ultra-low power differential voltage and current measurements (soil microbial fuel cells), SDI-12 digital environmental probes (TEROS soil moisture), and standard I2C sensors.
  • Dual Wireless Connectivity: Onboard LoRaWAN for long-range field deployments and WiFi for laboratory testing and captive portal configuration.
  • Interactive Cloud Visualization: Centralized ingestion and visualization via the DirtViz web application, offering interactive plotting, real-time data streaming, and raw CSV export.
  • Extensible Ecosystem: A documented REST API enabling automated downstream control systems such as the NodeFlow irrigation automation project.

Architectural Roadmap

The ENTS platform maintains a distinct separation between current production deployments and future research:

  • Production Firmware (Bare Metal STM32 HAL): The stable, field-proven firmware running on the STM32WLE5 microcontroller using ST HAL and PlatformIO, paired with an ESP32 for wireless captive portal configuration.
  • Future Firmware (TockOS Architecture): The next-generation operating system branch built on the Tock embedded microkernel in Rust, delivering process isolation, memory safety, and fault-tolerant userspace sensor applications.

For technical details and transition goals, see the Project Roadmap.


Peer-Reviewed Publications

The ENTS platform is supported by academic research published in ACM conferences:

  1. ENTS: Experiences in Co-Designed Environmental Sensing
    John Madden, Stephen Taylor, Laura Jaliff, Aaron Wu, Alec Levy, Jack Lin, Ahmed Falah, Tyler Potyondy, Josiah Hester, George Wells, Yaman Sangar, Pat Pannuto, and Colleen Josephson.
    Proceedings of the 24th ACM Conference on Embedded Networked Sensor Systems (SenSys '26).
    https://doi.org/10.1145/3774906.3802780

  2. Demo: Hardware to Unleash Novel Energy Sources for Outdoor Sensor Networks
    Alec Levy, John Madden, Mirella Pessoa de Melo, and Colleen Josephson.
    Proceedings of the 23rd ACM Conference on Embedded Networked Sensor Systems (SenSys '25), pp. 706–707.
    https://doi.org/10.1145/3715014.3724369

  3. Hardware to Enable Large-Scale Deployment and Observation of Soil Microbial Fuel Cells
    John Madden, Gabriel Marcano, Stephen Taylor, Pat Pannuto, and Colleen Josephson.
    Proceedings of the 20th ACM Conference on Embedded Networked Sensor Systems (SenSys / ENSsys '22), pp. 906–912.
    https://doi.org/10.1145/3560905.3568110

For full abstracts and BibTeX citations, refer to the Publications section.


Community and Support

ENTS is an open-source collaboration developed by the jLab in Smart Sensing at the University of California, Santa Cruz.


Funding Acknowledgements

This project and open-source ecosystem are supported in part by:

  • National Science Foundation (NSF): Pathways to Enable Open-Source Ecosystems (POSE) program.
  • UC Santa Cruz Agricultural Experiment Station: Funding provided by the State of California.
  • U.S. Department of Agriculture (USDA), National Institute of Food and Agriculture (NIFA): Hatch Act of 1887 funding (Accession number: 7010079).
